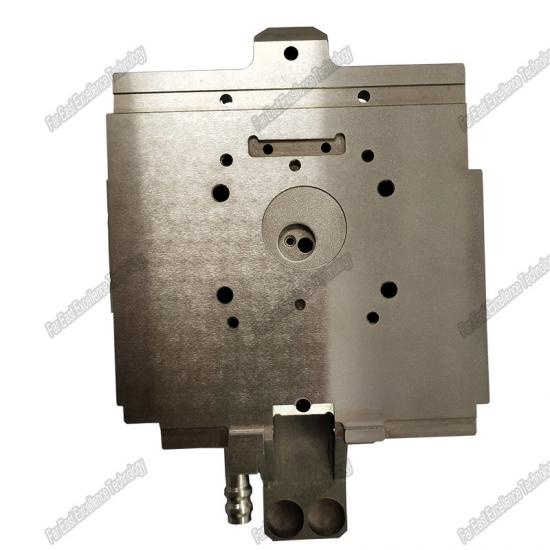

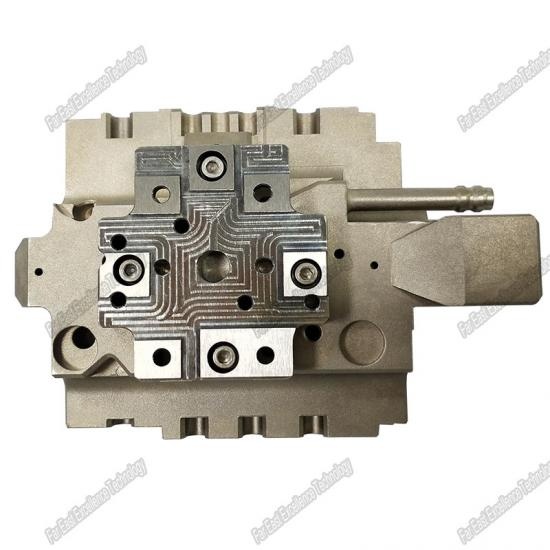

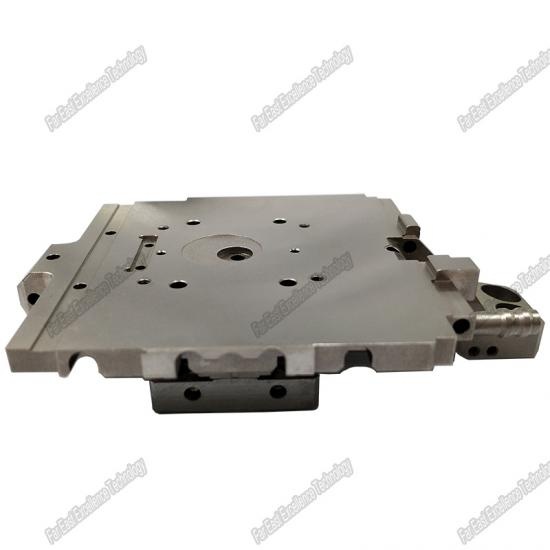

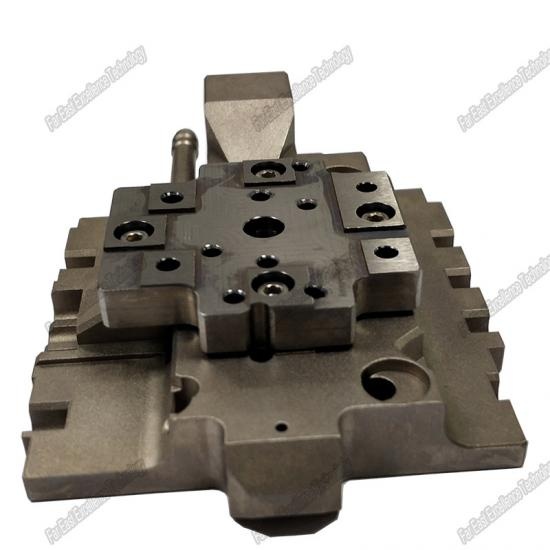

Bigger Gas Circuit Copper Modules

The industrial big precision module has typical feature that is very highly strict to dimension and appearance. Moreover, must be through the vacuum test and high pressure test as circuit module for semiconducting machine.

  • Item NO.:

    GN26-B
  • Order(MOQ):

    1
  • Payment:

    Negotiable
  • Product Origin:

    China
  • Color:

    Silver
  • Shipping Port:

    Shenzhen
  • Lead Time:

    15-20 days
  • Product Detail

The industrial big precision module has typical feature that is very highly strict to dimension and appearance. Moreover, must be through the vacuum test and high pressure test as circuit module for semiconducting machine.


Product Information

Name

Bigger Gas Circuit Copper Modules

Material

Copper

Surface Finish

Electroless Nickel Coating

Procedure

Milling+Grinding+Coating+Assembly

Flatness

0.01 mm

Perpendicularity Parallelism

0.02 mm


Difficulty

1. The circuit module for semiconducting machine must be through the vacuum test and high pressure test.

2. It is high request on Flatness and appearance of precision assembly big module.

3. Pay attention to damage on treated surface during transportation assembly and function test.


Application Field

It is circuit module as special shaped tortoise machined module to be designed and production, can be applied in Industrial automation, Automotive, medical and Semiconducting Industries etc.


At a Glance

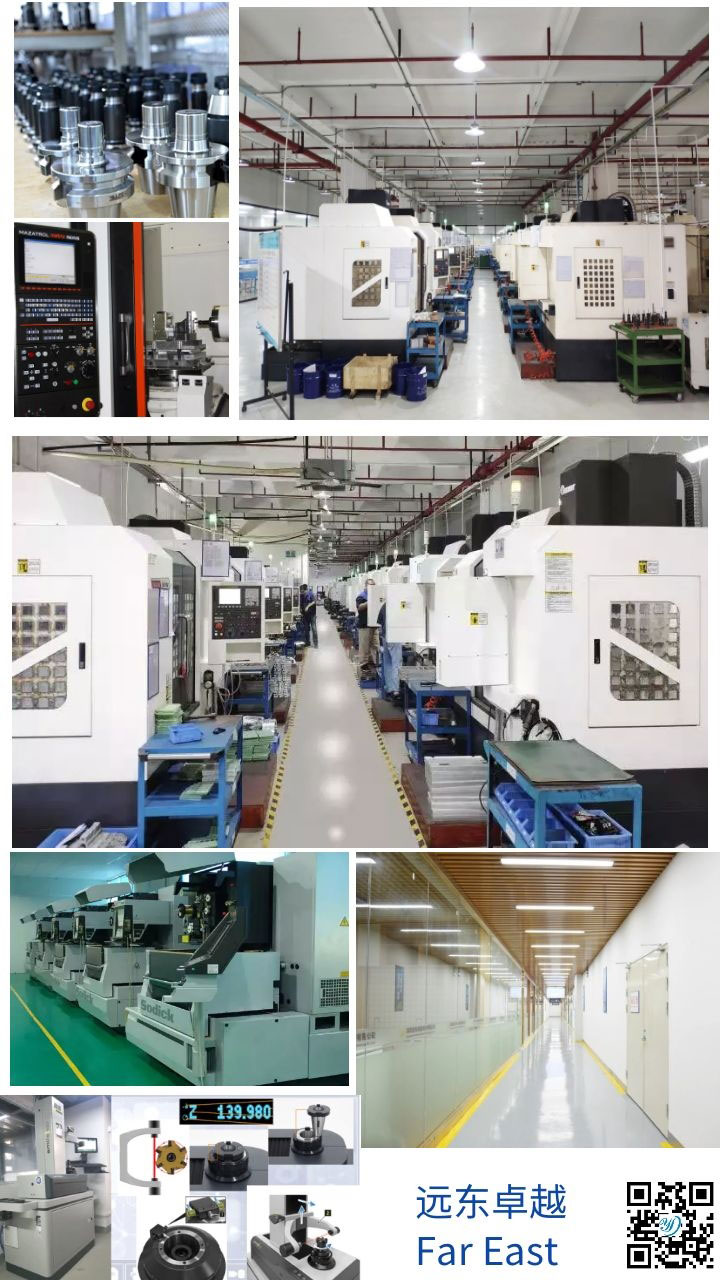

Manufacturing Equipment for CNC maching


Our Services

1. ON Time Delivery

2. Speedily Manufacturing

3. Strictly QA Control and 0 Complaint, Trust Us and Best Quality for you.

4. After-Sales Service in 1 year free.


QA Policy

1.   Quality First.

2.   Continuously Improving.

3.   Customers’ Satisfaction.


Shipping

Free Shipping to the Door in China . Can ship out with DHL, FeDEX, UPS etc international express or by boat as Customer’s preference.
