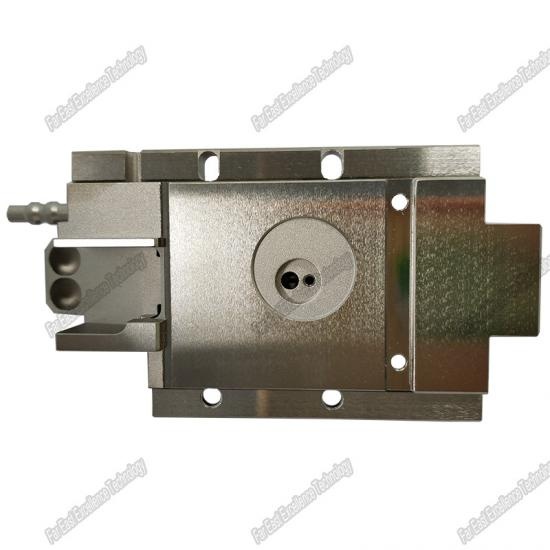

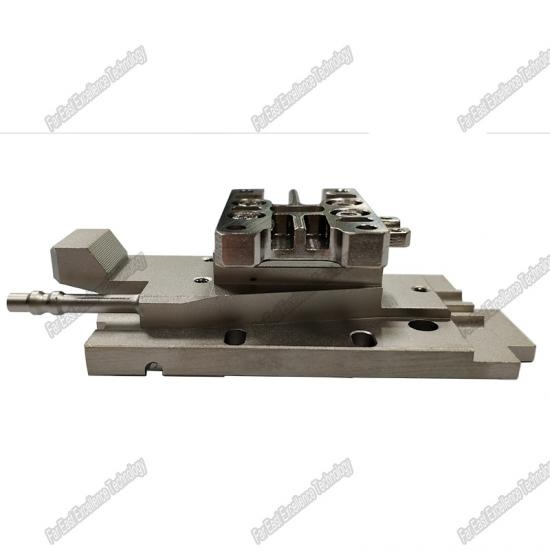

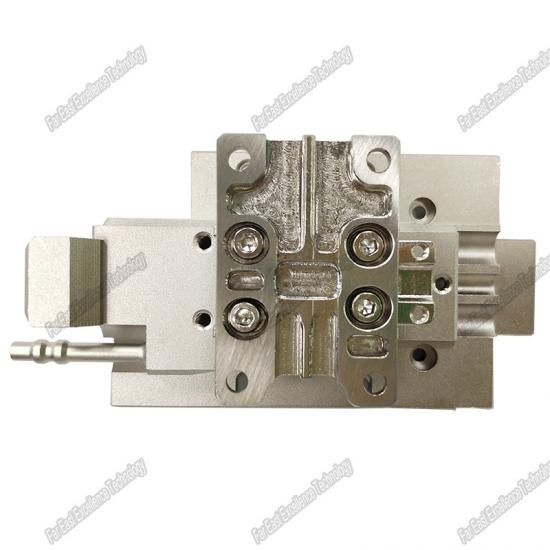

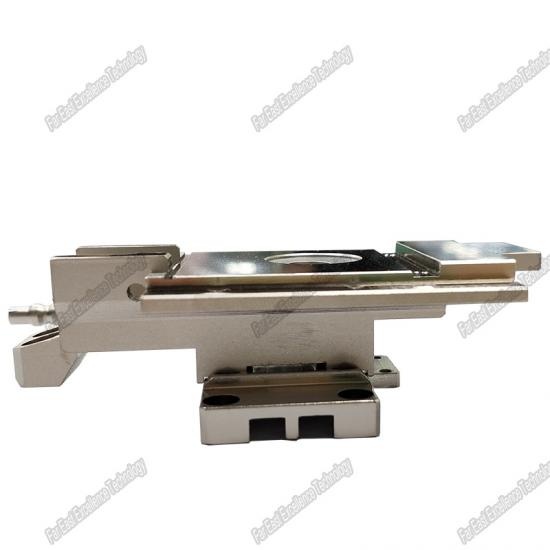

Complicated Gas Path Copper Modules

Industrial automation modules are generally composed of several to dozens of components, and more complex modules have slightly more components, up to several hundred. Modules and die-casting parts and electronic components are complementary, they will be assembled together and finally work for the operation of automated equipment.

The industrial big precision module has typical feature that is very highly strict to dimension and appearance. Moreover, must be through the vacuum test and high pressure test as circuit module for semiconducting machine.

This module has two bearing seats, which has higher precision and better bearing capacity. The square guide rail has stronger load bearing capacity. The effective stroke is 60mm to 960mm. Far East Tech can customize processing according to your requirements.

This module is small in size and light in weight, and has a modular structure, which greatly reduces the installation volume. The finite element method is used to design the structure to obtain the stiffness-to-weight ratio. Smooth positioning motion with low torque and low inertia reduces energy consumption.

It is one of Special Aluminum Parts which request make fine holes and as a rotary cylinder plate used on the measuring machine. Flat is up to 0.01 mm on the surface. Moreover, keep sharp edges and precision holes for position and very highly strict to the surface without any defects.

It is one of the Heavy Machinery Electroless Nickel Custom Backing Plate which request make brushed surface and as a rotary cylinder plate used on the measuring machine. Flat is up to 0.01 mm on the surface. Moreover, keep sharp edges and precision holes for position and very highly strict to the surface without any defects.

As 316 stainless steel components for assembly pulley used on the measuring machine. It required a strict roundness for twirling. Meanwhile, this part is processed in one go and precise in the location required to be machined within the strict tolerance.

It is a professional machining Welding accessories for food processing machine which the welded elbows are required to have a specific angle to the plane. Parts are not allowed to have welds and the surface is required to be smooth.Its flatness and perpendicularity is up to 0.02 mm and incline all holes for whole polish Accessories and very highly strict to the surface without any defects, deburr and keep sharp edge.

As high precision steel parts, the material is not expensive but the special shape makes the cost increase. moreover, it’s required high roughness and very highly strict to the surface without any burr and sharp edges.
